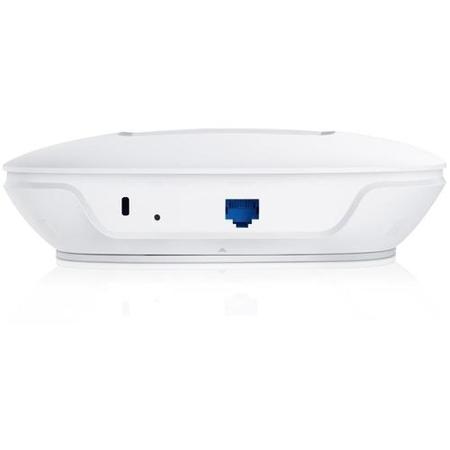

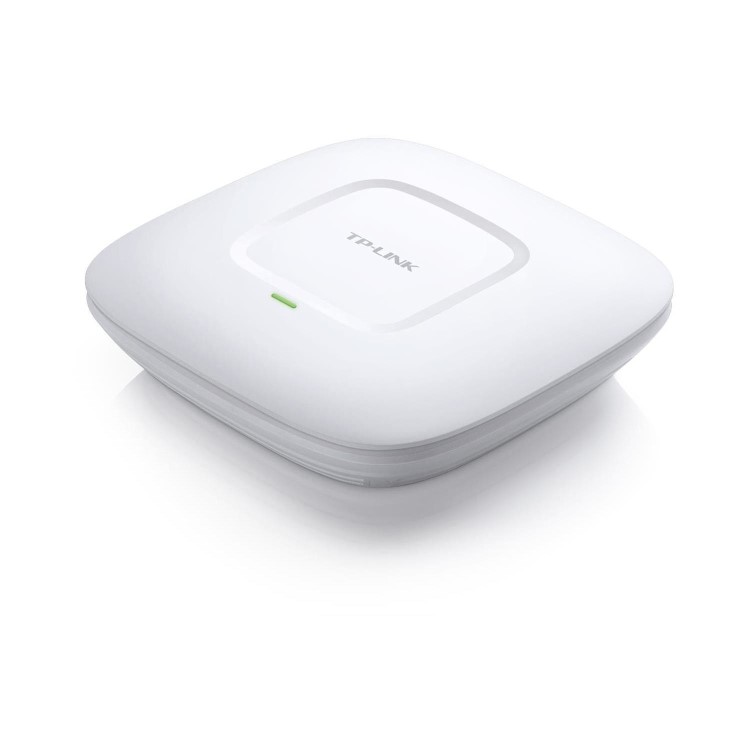

The TP-LINK’s EAP110 business Access Point provides a flexible, easy-to-deploy, manageable and robust security business-class wireless network solution. Simple mounting design to easily mount to a wall or ceiling. WLAN configuration and management are simplified through centralized management software. EAP110 also features captive portal and auto RF management, making it ideal for the high-density, intensive demanding businesses environment, include campus, hotels, malls and offices.
|
Antenna |
|
| Antenna gain level (max) | 3 dBi |
| Antenna type | Omni |
| Antennas quantity | 2 |
| Integrated antenna | |
|
Design |
|
| Cable lock slot | Kensington |
| Colour of product | White |
| Internal | |
| LED indicators | |
|
Performance |
|
| 2.4 GHz | |
| Maximum indoor range | - M |
| Maximum outdoor range | 100 m |
|
Ports & interfaces |
|
| DC-in jack | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
|
Power |
|
| Input current | 1 A |
| Input voltage | 24 V |
| Power consumption (typical) | 7.7 W |
| Power over Ethernet (PoE) Support | |
|
Protocols |
|
| Management protocols | SNMP, Telnet, HTTP, HTTPS |
|
Security |
|
| MAC address filtering | |
| Security algorithms | 128-bit WEP,152-bit WEP,64-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
|
Operational conditions |
|
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
|
System Requirements |
|
| Compatible operating systems | Microsoft Windows 8, 7, Vista, XP |
|
Weight & dimensions |
|
| Depth | 180 mm |
| Height | 47.5 mm |
| Width | 180 mm |
